Products description

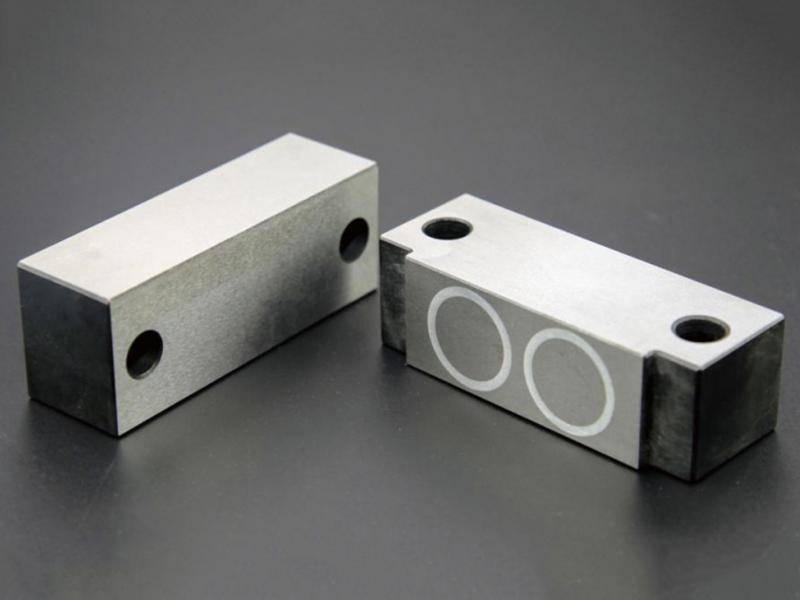

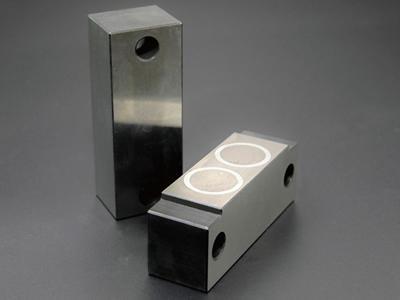

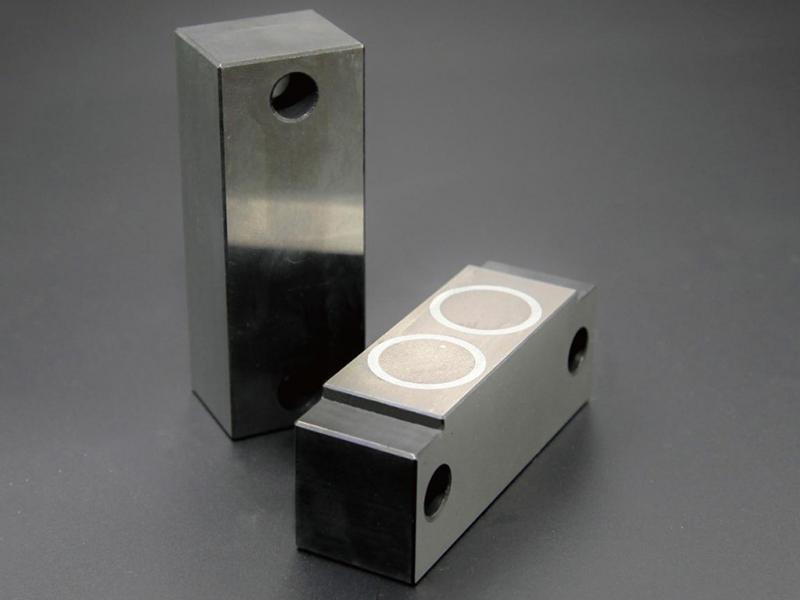

The magnetic lock sets are usually used to lock the injection mold through the use of a string magnetic force.

Features
  • Temperature resistance properties: functions will not be influenced by temperature changes.
  • Long service life. The reduction of the magnetic force will not be more than 1%.
  • Simple loading and unloading. One magnetic shutter can be applied to different molds and can be used repeatedly.
  • Stable force. The mold is locked using a permanent, easily adjustable magnetic force.
  • Convenient installation. It can be installed on mold sides A and B without accuracy requirements.
  • It is produced separately from the mold.
Products specification
Type Pole Distance (MM) Length (MM) Height (MM) Width (MM)
MLK-400 100 125 60 35
MLK-200 100 125 45 35
MLK-100 52 70 40 30

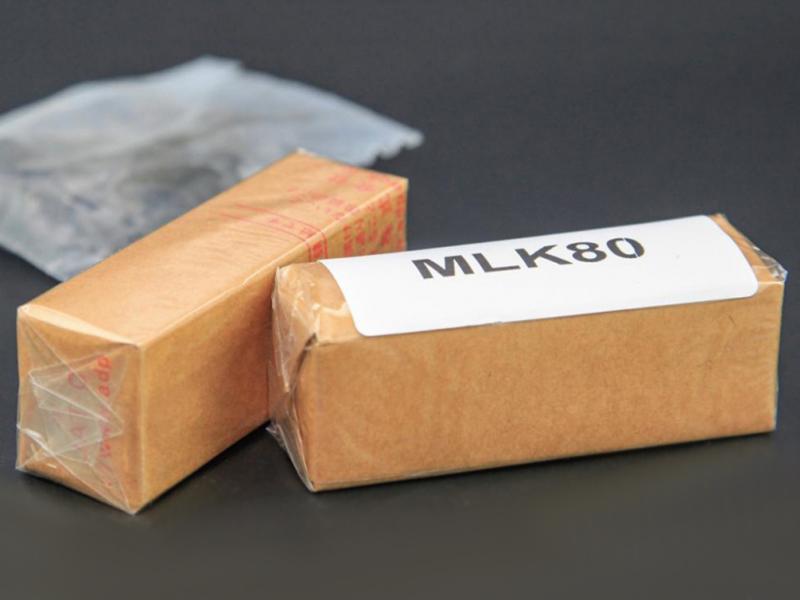

MLK-80 63 85 40 30
MLK-60 52 70 40 30
Parameters

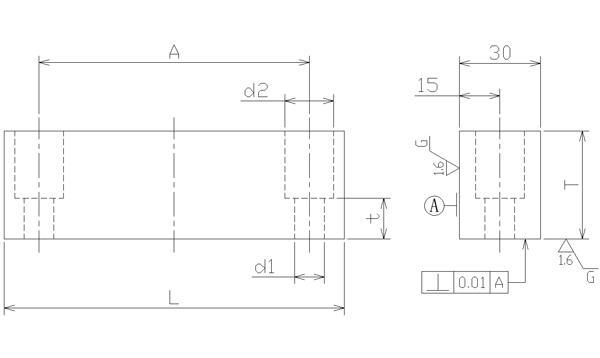

Type Clamping Force Heat-resistant Temperature Adhesive Strength/1Set (20℃) A B S L T t D1 D2 d1 d2
MLK 40 ≤ 80℃ 392.34 N (40kgf) 63 25 60 80 25 12 18 22 9 14
80 ≤200℃ 784.5N (80kgf)
100 ≤80℃ 980.7N 40 (100kgf) 100 39 79 126 40 15 30 34 11 18
200 ≤200℃ 1961.3N (200kgf)
100 ≤200℃ 980.6N (100kgf)

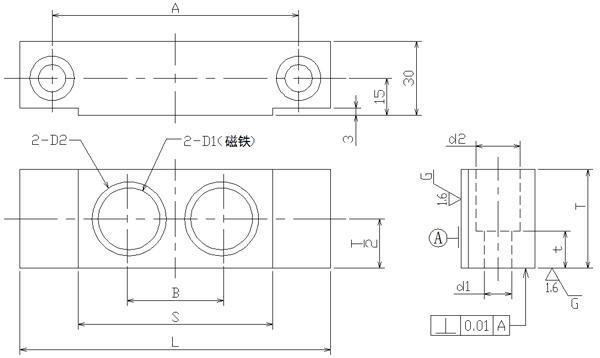

Type Clamping Force Heat-resistant Temperature Adhesive Strength/1Set (20℃) A S L T D1 D2 d1 d2
MLKC (Compact) 20 ≤80℃ 196.1N (20kgf) 36 36 50 25 17.5 22 6.6 11
40 ≤200℃ 392.N (40kgf)
50 ≤ 80℃ 390.31N (50kgf) 52
70 40
34 9 14
