Precision Dowel Pin

Products description

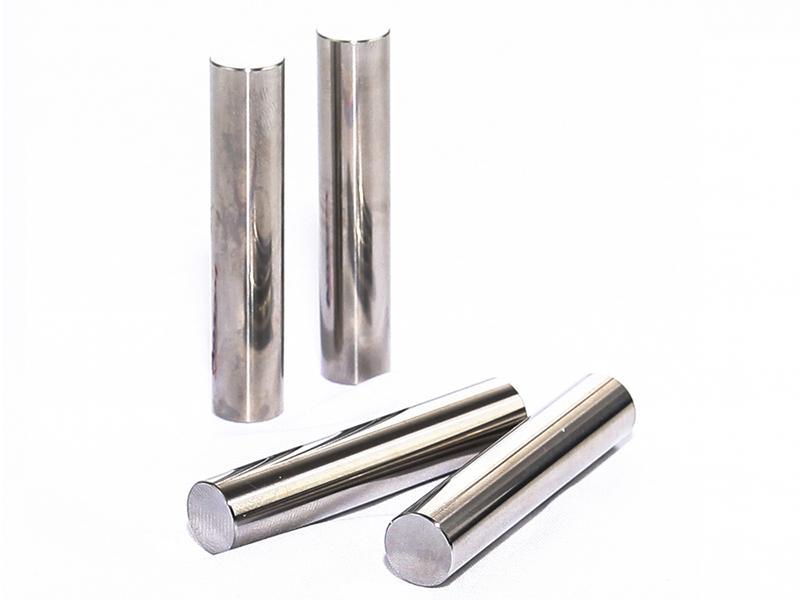

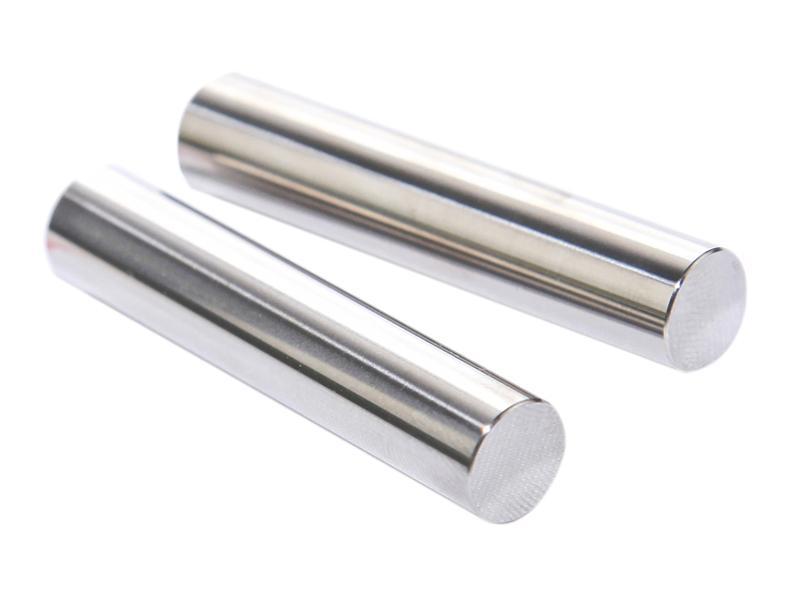

The precision dowel pins are usually used for the location and connection of raw material to a tool steel. It is polished to give it an excellent wear resistance, and the precision tolerance can reach up to 0.001mm. The special design of endmost chamfering will also help insert the pin into the hole.

We provide precision dowel pins within a wide range of sizes and types. Generally, we can produce the customized products according to your requirements within 8 days. We will ask for no additional mold cost, and will fulfill your order, no matter what the quantity is.

• High precision
  Our precision dowel pins are up to MISUMI standards. The minimum size is 0.1mm and the minimum tolerance is 0.001mm. We also can customize products according to your requirements.
• High hardness
  The hardness of the products is usually HRC58-62. Of course, you can choose different precision dowel pins with different hardness and raw materials including tungsten steel, Ceramic and stainless steel according to your operation situations. All types feature a high toughness.

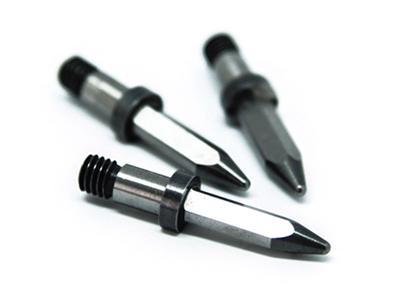

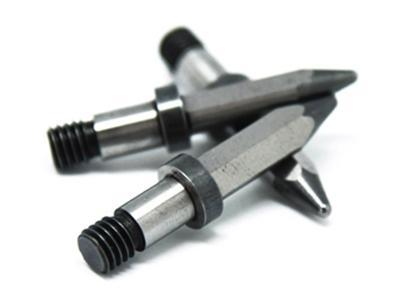

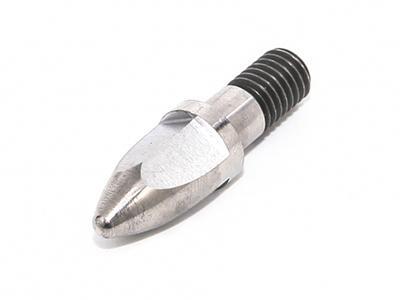

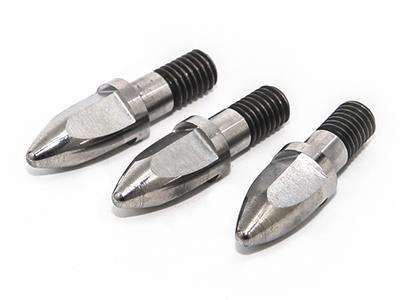

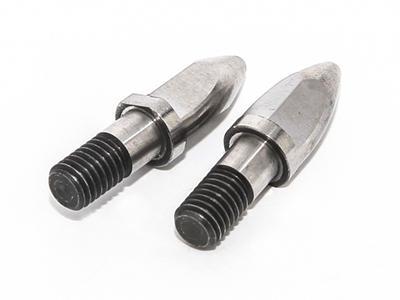

Clamp dowel pin
It is used to locate the work fixture such as welding fixtures, and more information can be found in Figures 6 through 12. We typically use two clamp dowel pins to limit the five DOFs of the component in the welding operation.

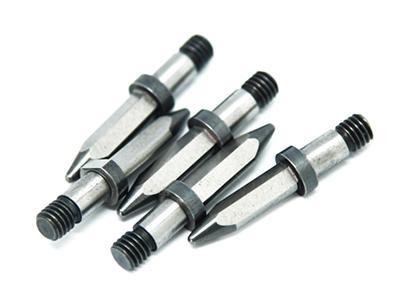

In addition, we provide circle and diamond dowel pins for you, with these two types often being used together. The hardness of the products is 55HRC, and we can customize dowel pins with various sizes. You are welcome to contact us if you have any question about the type and price of our products.
